Big LCD Display Digital Welding Gauge Precision Measuring Tools

Name: Big LCD Display Digital Welding Gauge Precision Measuring Tools
Brand: Pride
Price: 1 USD

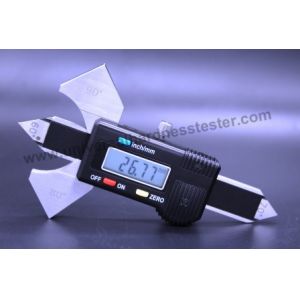

China Big LCD Display Digital Welding Gauge Precision Measuring Tools wholesale

Brand Name : Pride

Model Number : WG-1

Place of Origin : China

MOQ : 20pcs

Payment Terms : T/T, Western Union, MoneyGram,Paypal,Payoneer

Delivery Time : 10-15 days

Packaging Details : Cases Box

Reading : +/- 0,01 mm

Power supply : Battery 1,55 V, LR 1130 SW

Material : Stainess Steel

Type : Welding Gauge

Packing : Cases

Operating temperature : -10°C~+60°C

Error : ±0.03mm/±0.001

Storage temperature : -10°C~+60°C

Contact Now

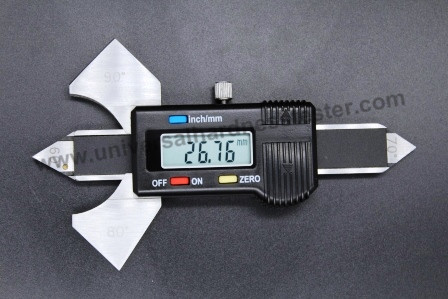

Big LCD Display Digital Weld Gauge Precision Measuring Tools

Digital Weld Gage

Precision design, for measuring of flat welding seams and welding seams in corners.

In order to observe the required V-seam-angle at flat welds, the angles of 60°, 70°, 80°and 90° are attached at the gauge.

Big LCD Display Digital Welding Gauge Precision Measuring Tools

Features:

Stainless steel,Hardened and ground

Turn on/off,Switchable mm/inch

Measured value showed on a big LCD-Display

Reading +/- 0,01 mm

Power supply: Battery 1,55 V, LR 1130 SW

With data output interface

Big LCD Display Digital Welding Gauge Precision Measuring Tools

Operation:

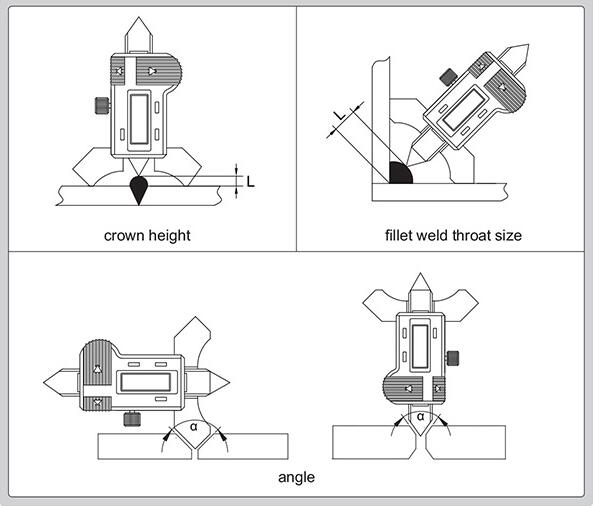

Press the On/off button to switch on the power. Press the mm/in button to set the unit
system you need. Set zero on a plane to measure plane weld seam according to the
picture on the right, set zero on a 90° bevel to measure 90° bevel weld seam. Then
press Zero button, the LCD will display “mm0.00”. Put the weld seam between
two measuring faces and move the scale till measuring faces and weld seam contact
gently, then the value displayed is the height of weld seam.

Function:

1. Zero setting at any position
2. Metric/ Inch system conversion at any
position
3. The digital weld gauge is equipped with
an output port
Data can be input into a computer or a
special printer via special connecting cable.
The working way
of the interface
Synchronous serialization
Data: Binary code, 24 bits Each datum
will be transferred twice. The cycle is
300ms(20ms in fact reading mode)
Transmitting time: 0.5ms
